Safe lifting, stacking and movement of palletised loads in warehouses, factories and production areas. Compact, well balanced without a counterweight, and lifted by a reliable hydraulic hand pump. No power required.

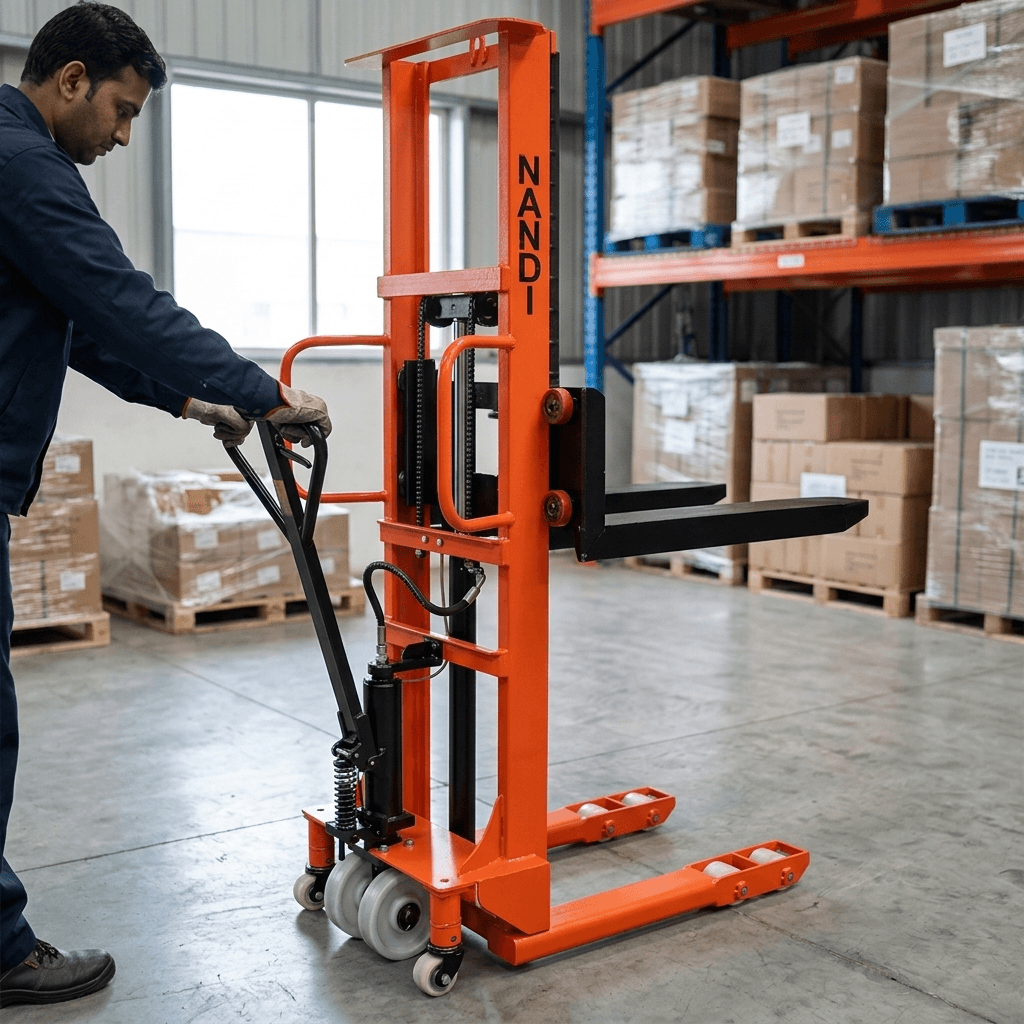

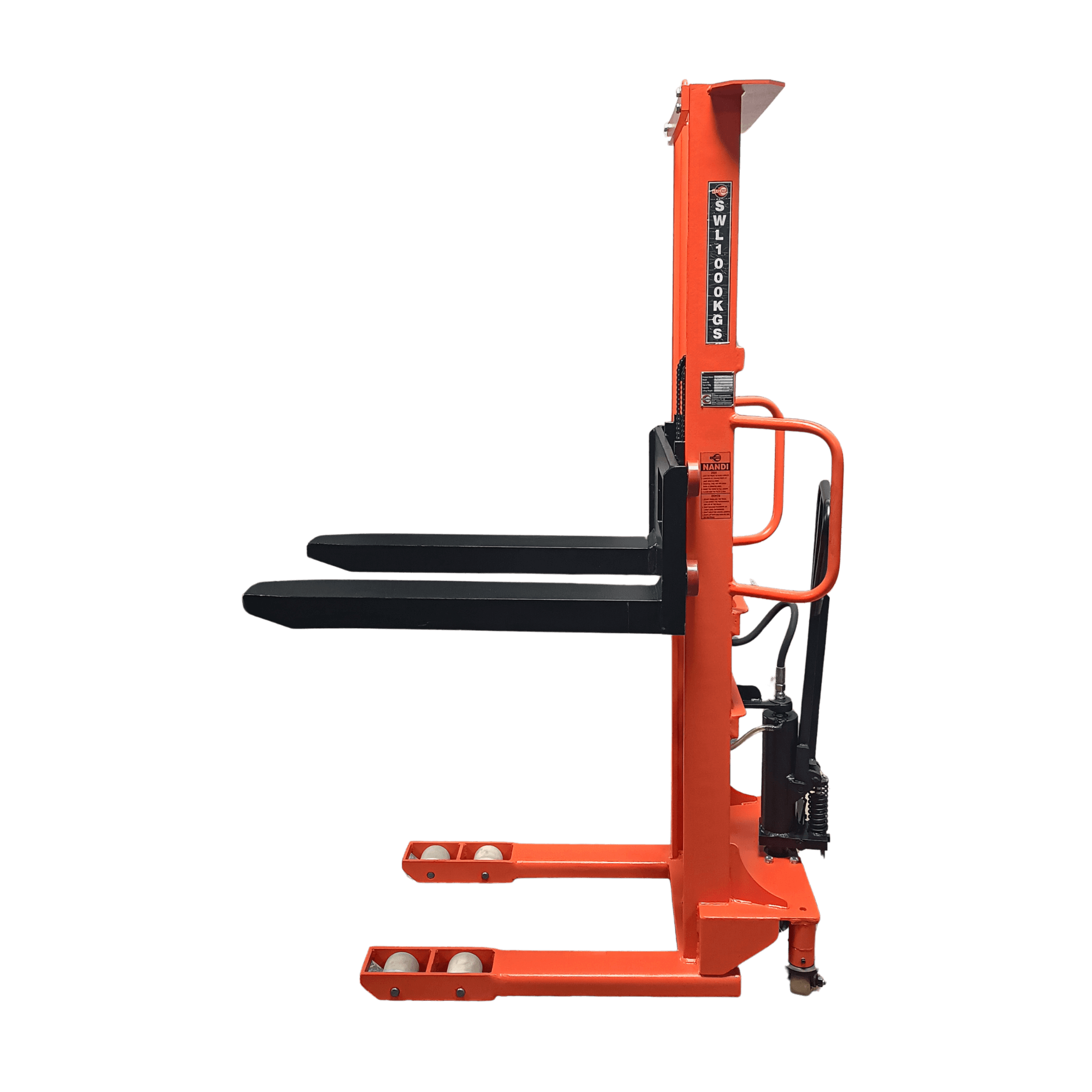

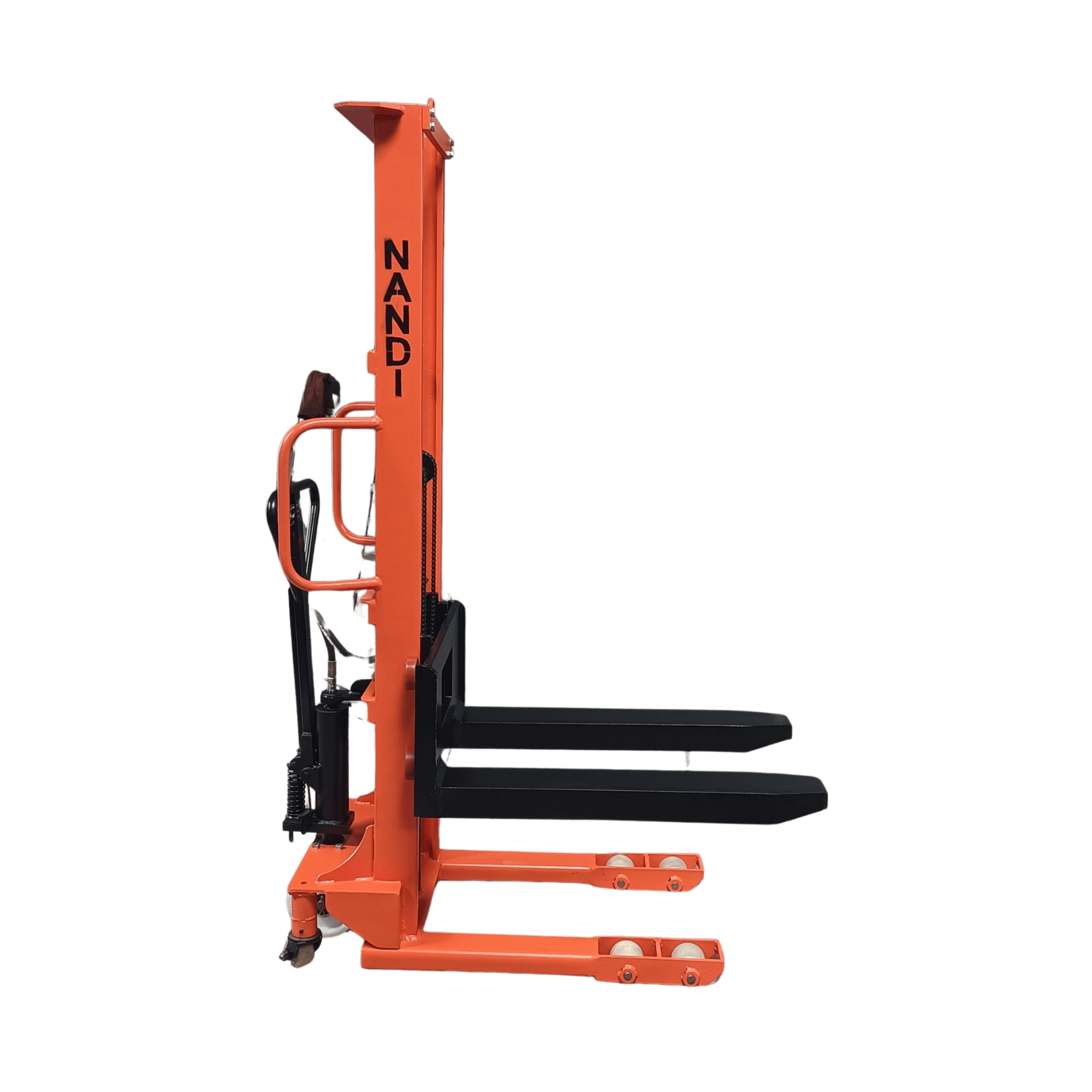

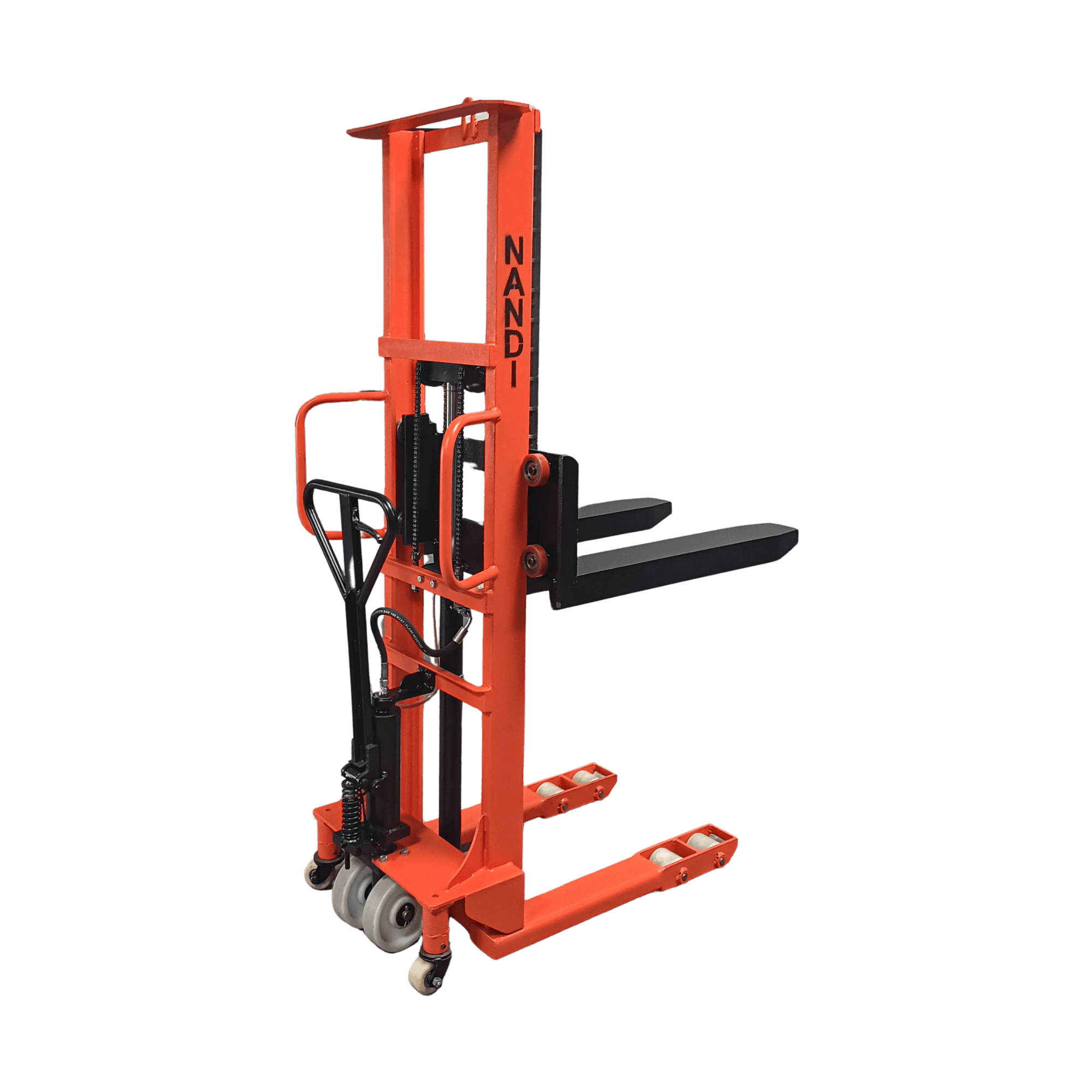

Nandi Hydraulic Manual Stackers lift, stack and move palletised loads safely in warehouses, factories, stores and production areas. Compact and sturdy, they are pushed by hand and lifted by a reliable hydraulic hand pump. Well balanced without a counterweight, they turn easily in tight aisles and give dependable day-to-day performance.
A fool-proof hydraulic lifting mechanism with cartridge-type stationary seal, release valve and overflow relief keeps operation safe and maintenance simple. Standard dimensions suit I.S.I. pallets, with length, width and height customisable to your requirement. Available in 250 kg, 500 kg, 1,000 kg, 1,500 kg and 2,000 kg capacities, in adjustable fork, fixed fork and platform type variants, and backed by ready spare parts and service support.
| Product Type | Hydraulic Manual Stacker |
| Rated Capacity | 250 kg to 2,000 kg |
| Lowered Height | 100 mm |
| Lift Height | 500 mm to 2,000 mm |
| Fork Length | 500 mm to 1,500 mm |
| Overall Fork Width | 500 mm to 1,500 mm |
| Width of Each Fork | 100 mm / 125 mm / 150 mm |
| Mast Type | Single Mast |
| Movement | Manual |
| Wheel & Roller Options | Nylon / Cast Iron / Polyurethane |
| Variants | Adjustable Fork / Fixed Fork / Platform Type |
| Valve System | Cartridge Type, Release & Overflow Relief |
The right tool for safe pallet lifting and stacking. It protects your workers, cuts manual lifting strain and keeps material moving across warehouses, stores and production areas.
Pallet lifting and stacking in warehouses, with safe, controlled hydraulic lifting of palletised loads to racks and storage levels.
Loading and unloading operations, with smooth hydraulic lifting and controlled placement of palletised goods.
Material movement in stores and production areas where compact size, balance and manoeuvrability matter.
Internal handling of palletised goods in factories and workshops, with dependable performance for day-to-day industrial use.
Select the specifications that match your application. Our team will prepare a tailored quote based on your configuration.
