Built for handling paper reels in mills, printing and converting units. Reinforced V-forks, leak-free hydraulics and sizes made to your reels, with no power required.

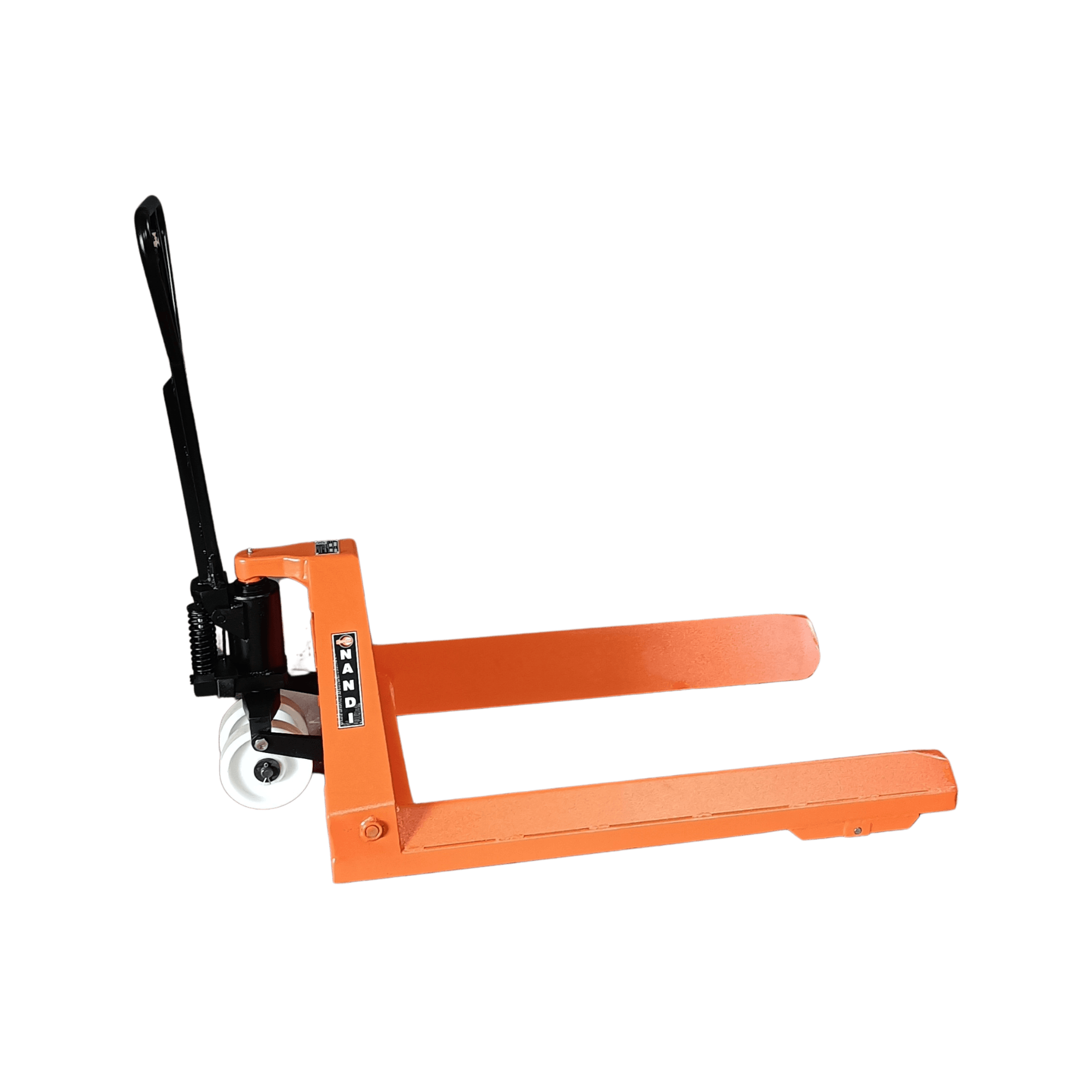

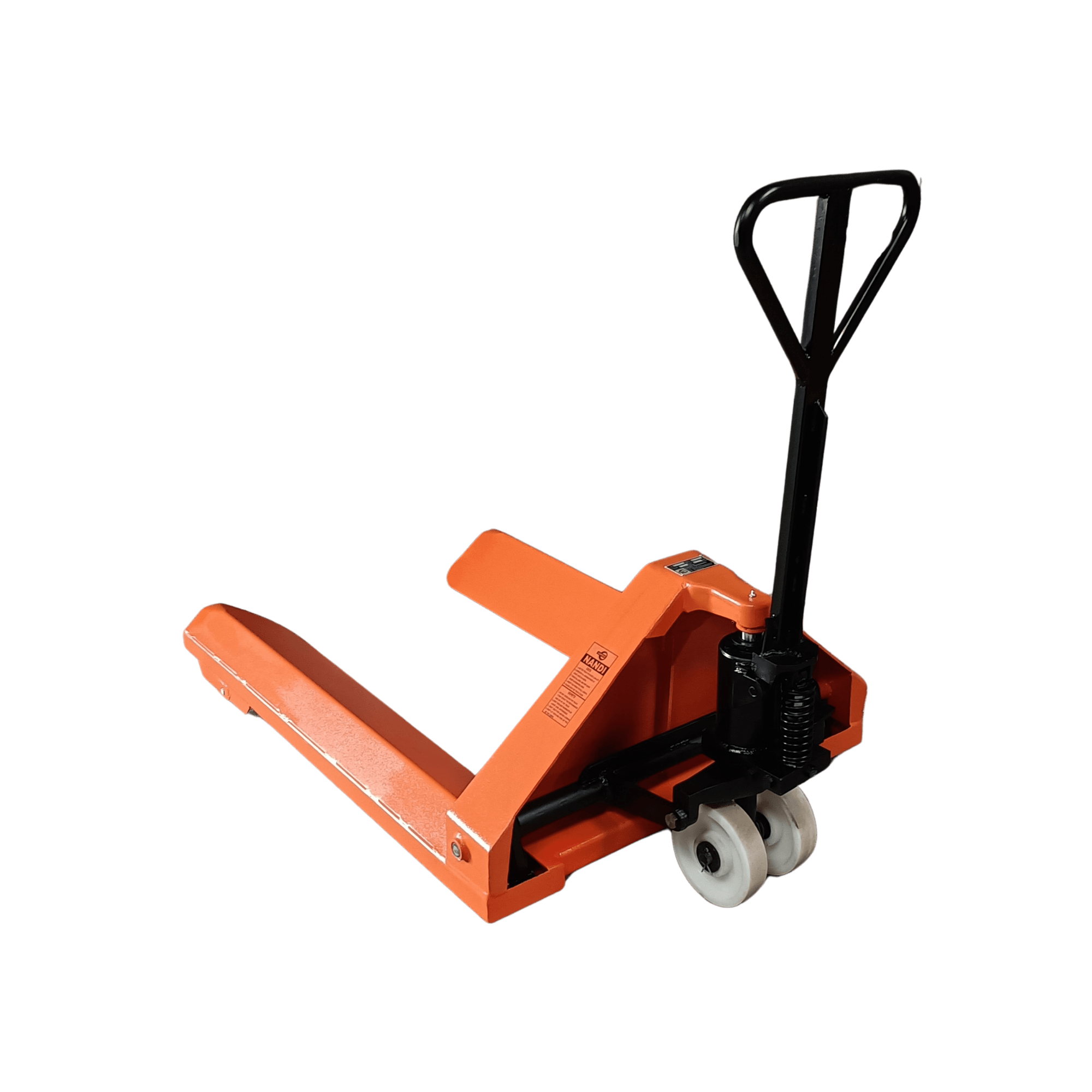

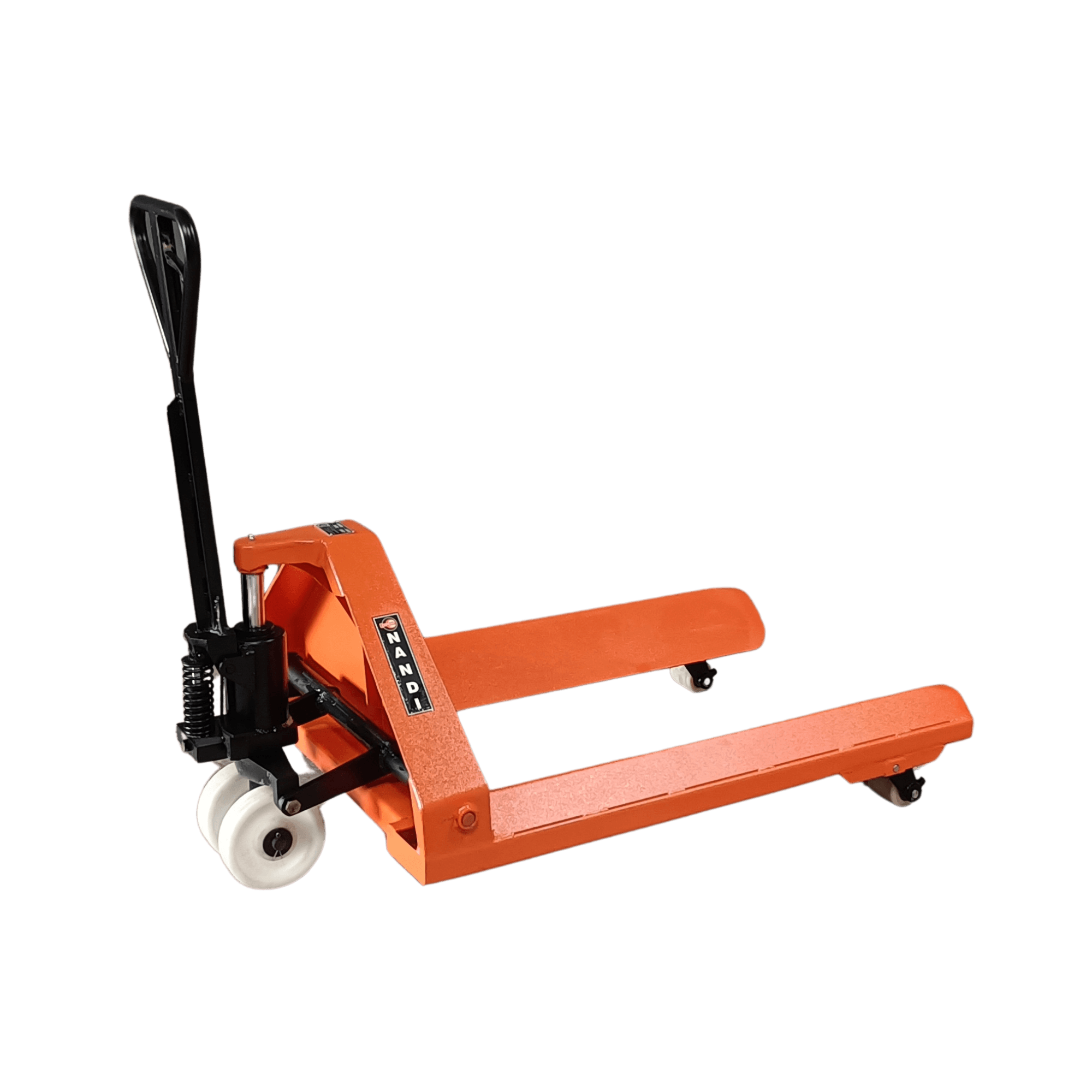

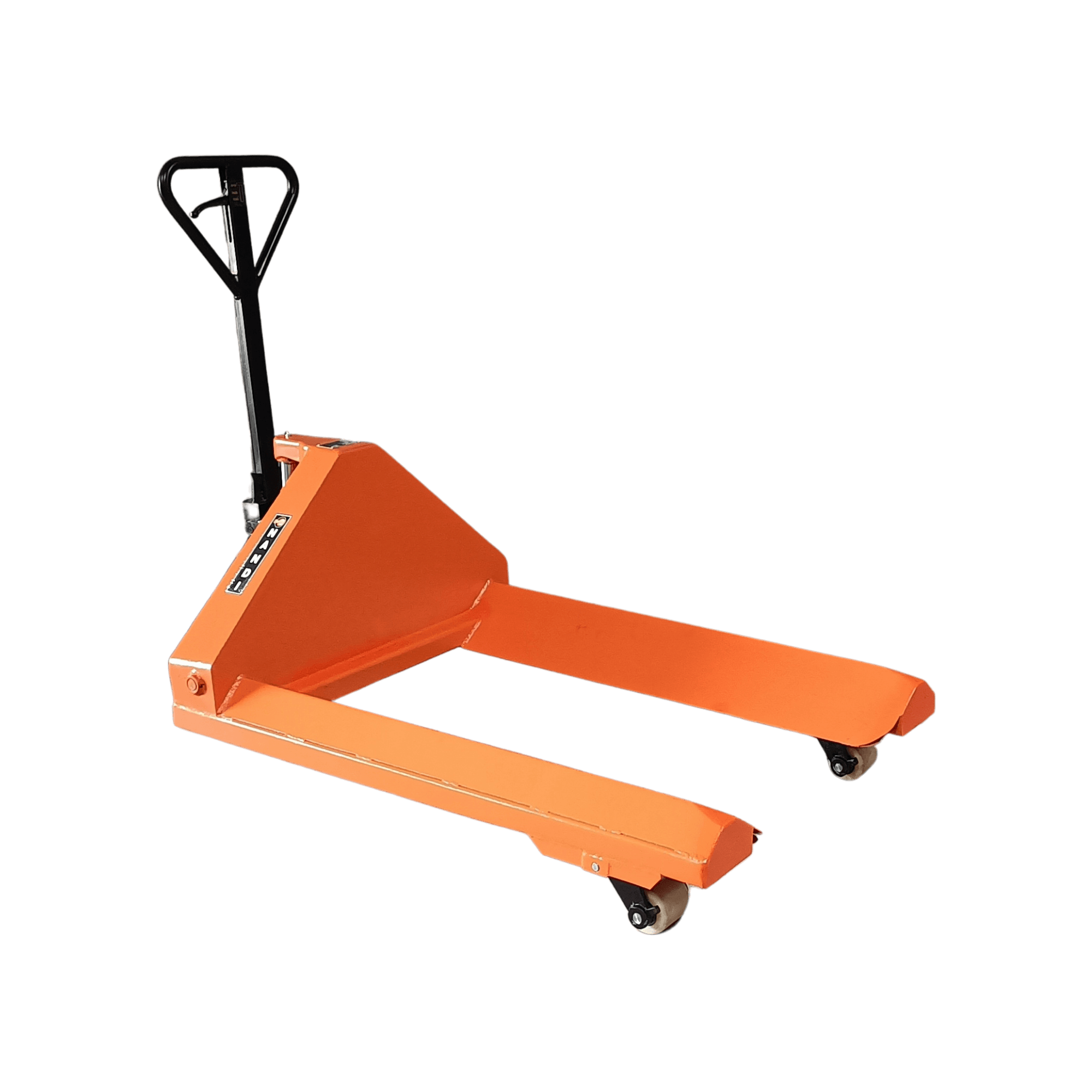

The Nandi Hydraulic Paper Reel Trolley is built for handling paper reels in paper mills, converting units, printing units and similar plants. Reinforced V-forks cradle the reel so it cannot roll, and a hand-operated hydraulic pump lifts it clear of the floor. One operator can lift, move and position reels of different sizes with control and without straining.
The cartridge-type valve keeps maintenance simple, and the hydraulic circuit is built to stay leak-free in shop-floor conditions. Choose 2,500 kg, 3,000 kg or 5,000 kg capacity, then tell us your reel sizes: we set the fork length (up to 3,500 mm) and width to suit reel diameters from 600 mm to 1,500 mm. Spare parts are kept ready and our service team supports the trolley after delivery.
| Rated Capacity | 2,500 kg / 3,000 kg / 5,000 kg |
| Fork Length | Customisable up to 3,500 mm |
| Width | To suit reel diameters 600 – 1,500 mm |
| Width of Each Fork | 160 mm, V-fork Type |
| Lowered Fork Height | 140 mm |
| Maximum Fork Height | 240 mm |
| Lifting Method | Manual Hydraulic Pump |
| Steering Wheel Size | Ø190 × 50 mm, 2 Nos |
| Load Roller Size | Ø80 × 60 mm, 4 Nos |
| Fork Design | Reinforced for Heavy-duty Usage |
| Valve System | Cartridge Type, Easy Maintenance |
| Finish | Deep Orange Powder-coated |
For safe paper reel handling across mills, presses and packaging lines, with less manual lifting for your workers.

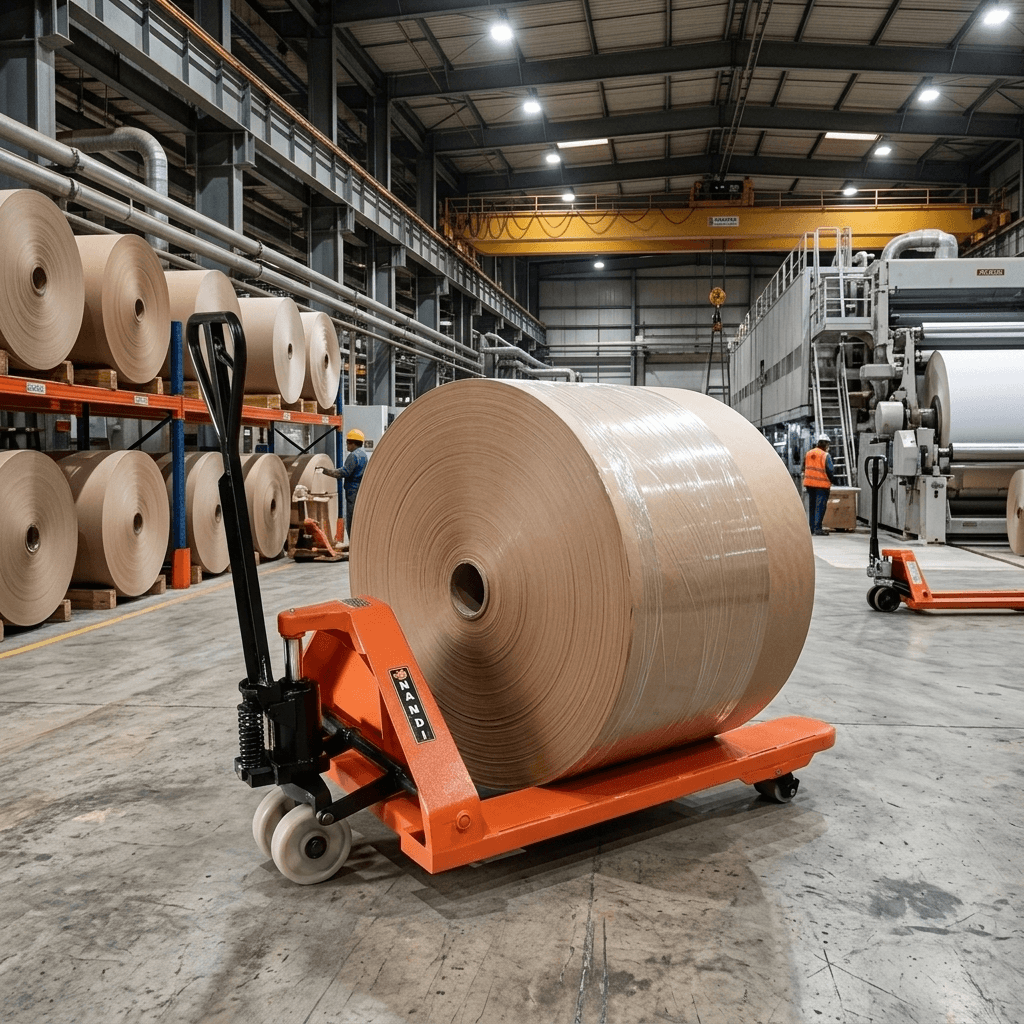

Lifting, moving and positioning heavy reels of different sizes across mill floors with one operator.
Feeding and positioning reels at printing and converting lines with a smooth hydraulic lift and controlled movement.
Heavy-duty reel handling in packaging plants where the trolley runs all day and the hydraulics must hold.
Moving reels between shop floors, storage areas and narrow aisles, on steering wheels and load rollers that turn easily.
Select the specifications that match your application and our team will prepare a quote for that configuration.
