Purpose-built for lifting non-palletised loads in cramped spaces where conventional stackers cannot reach. Manual hydraulic operation: no power and no fixed installation required.

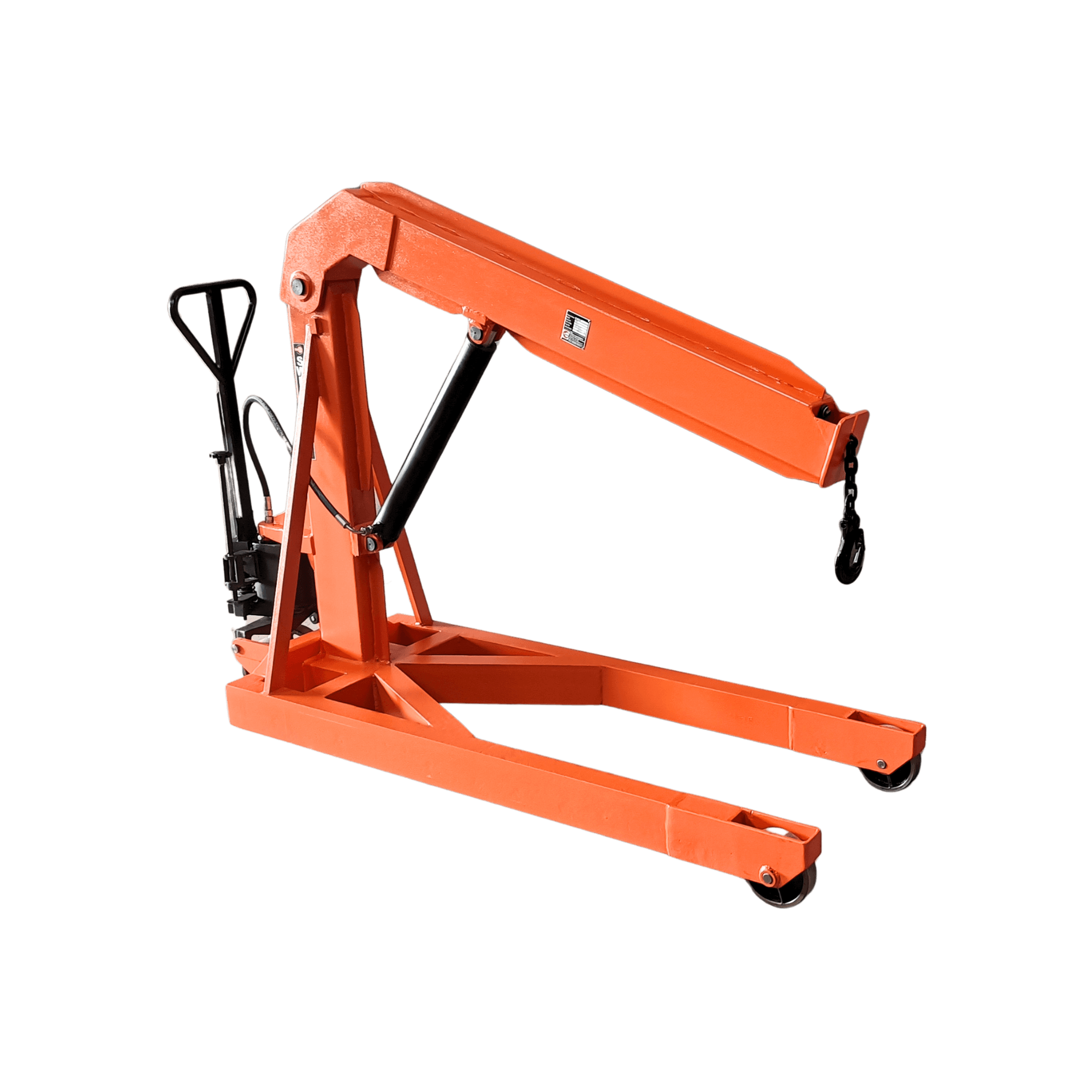

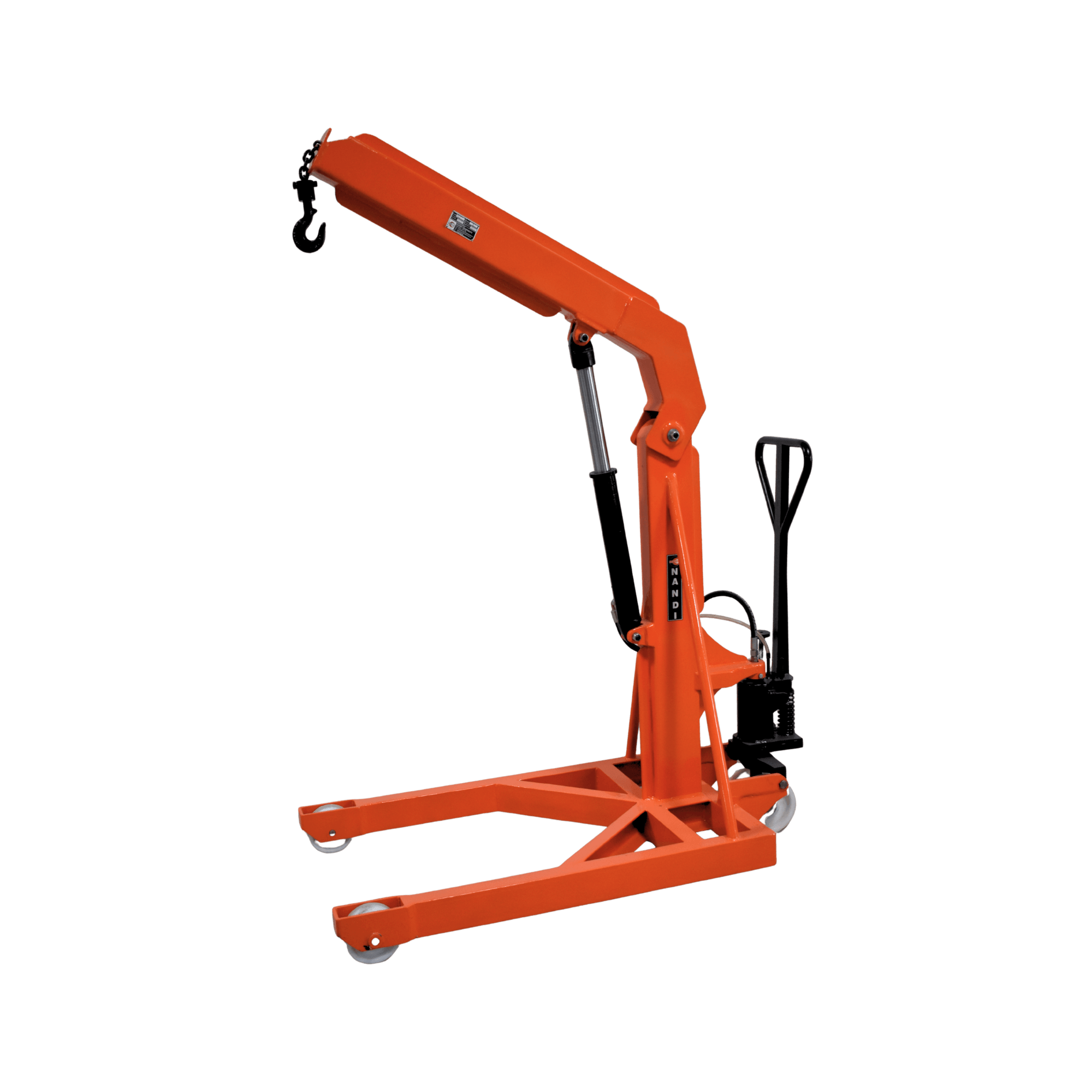

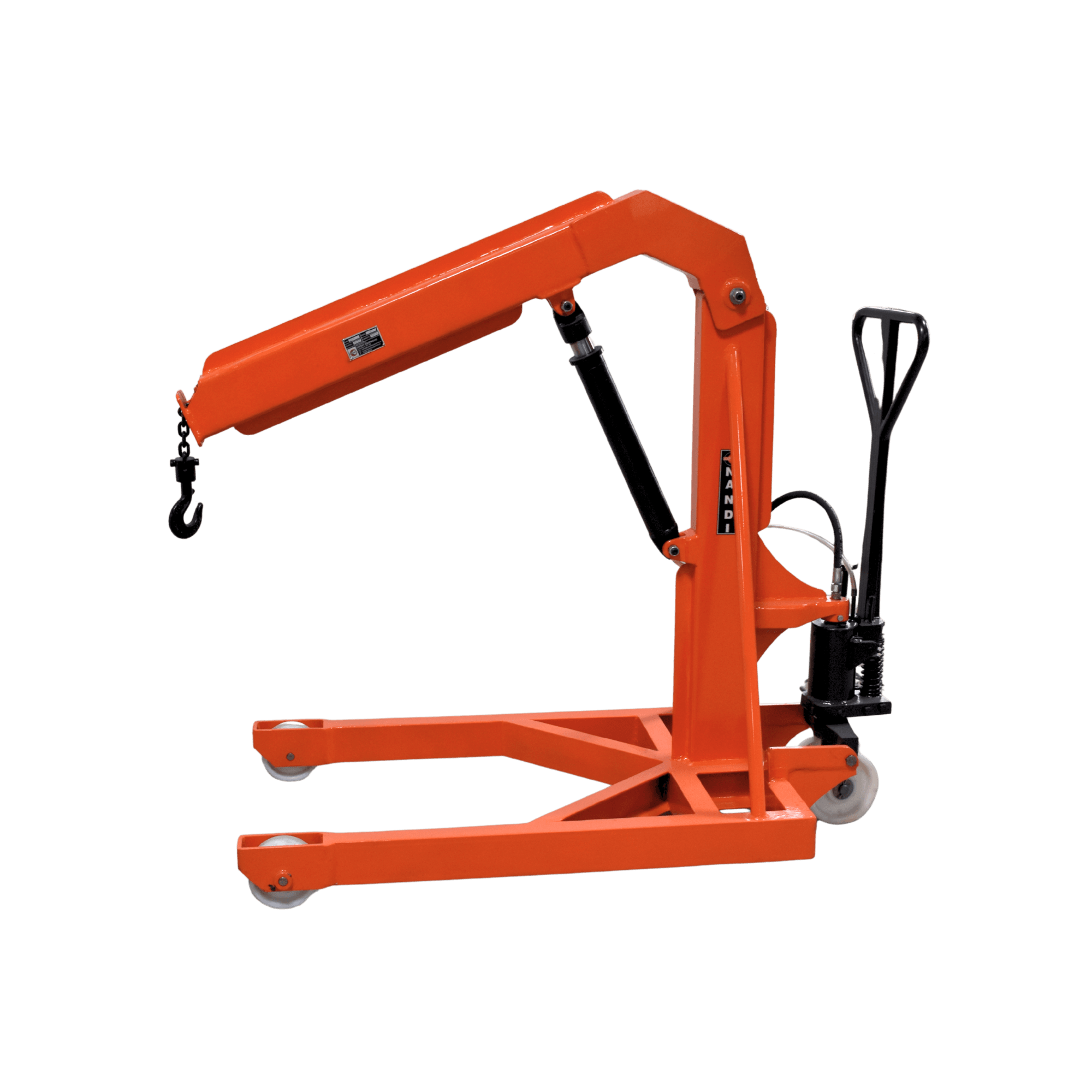

The Nandi Hydraulic Jib Crane is a manually operated floor crane for the safe lifting, handling and movement of non-palletised loads where conventional stackers cannot be used. The hydraulic boom is raised and lowered with a manual pump, so it needs no electrical connection and no fixed installation, and suits cramped bays, narrow aisles and hard-to-reach areas equally well.
Built to your requirement in Coimbatore, each crane has an EN8 hard-chromed piston, a heavy-duty C-formed sheet boxed pillar, a welded boom arm with extra stiffening, and brass bushes at all fulcrum points to reduce wear. Available in four capacity variants from 500 kg to 2,000 kg, with hook heights up to 2,200 mm.
| Capacity | 500 kg / 1,000 kg / 1,500 kg / 2,000 kg |
| Min Hook Height | 750 mm |
| Max Hook Height | 2,200 mm |
| Overall Width | 810 mm |
| Lifting Method | Manual Hydraulic Pump |
| Movement | Manual Push and Pull |
| Wheel Type | Nylon / Cast Iron |
| Wheel Size | Ø190 × 50 mm (2 Nos) / Ø150 × 50 mm (2 Nos) |
| Piston Material | EN8 Hard Chromed and Plated |
| Pillar Construction | Heavy-duty C-formed Sheet Boxed |
| Boom Construction | Welded with Extra Stiffening |
| Fulcrum Points | Brass Bushes, Wear Resistant |
The right tool for non-palletised load handling where conventional stackers cannot be used: machine shops, narrow aisles, cramped bays and restricted access areas.

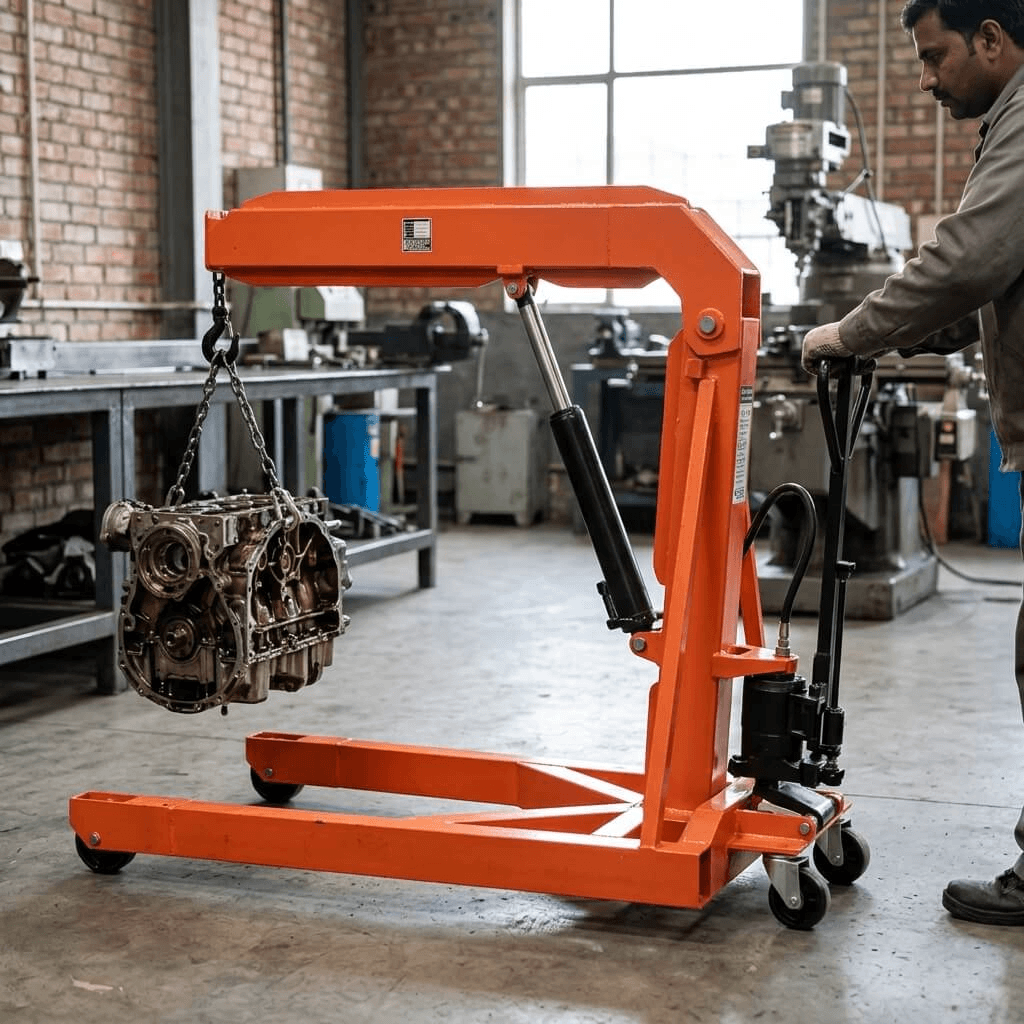

Lifting and shifting heavy components in workshops where fixed overhead cranes are not installed and space is limited.
Moving heavy moulds, dies, and non-palletised sub-assemblies between production stations with no power dependency.
Safe handling of heavy components during loading and unloading where pallet-based equipment is not suitable for the load type.
Material movement in narrow aisles, confined spaces, and hard-to-reach areas where conventional lifting equipment cannot operate.
Select the specifications that match your application. Our team will prepare a tailored quote based on your configuration.
