Built for lifting, supporting and towing loaded A-frames in textile units. Compact hydraulic lift, sturdy steel body and heavy-duty nylon wheels, with no power required.

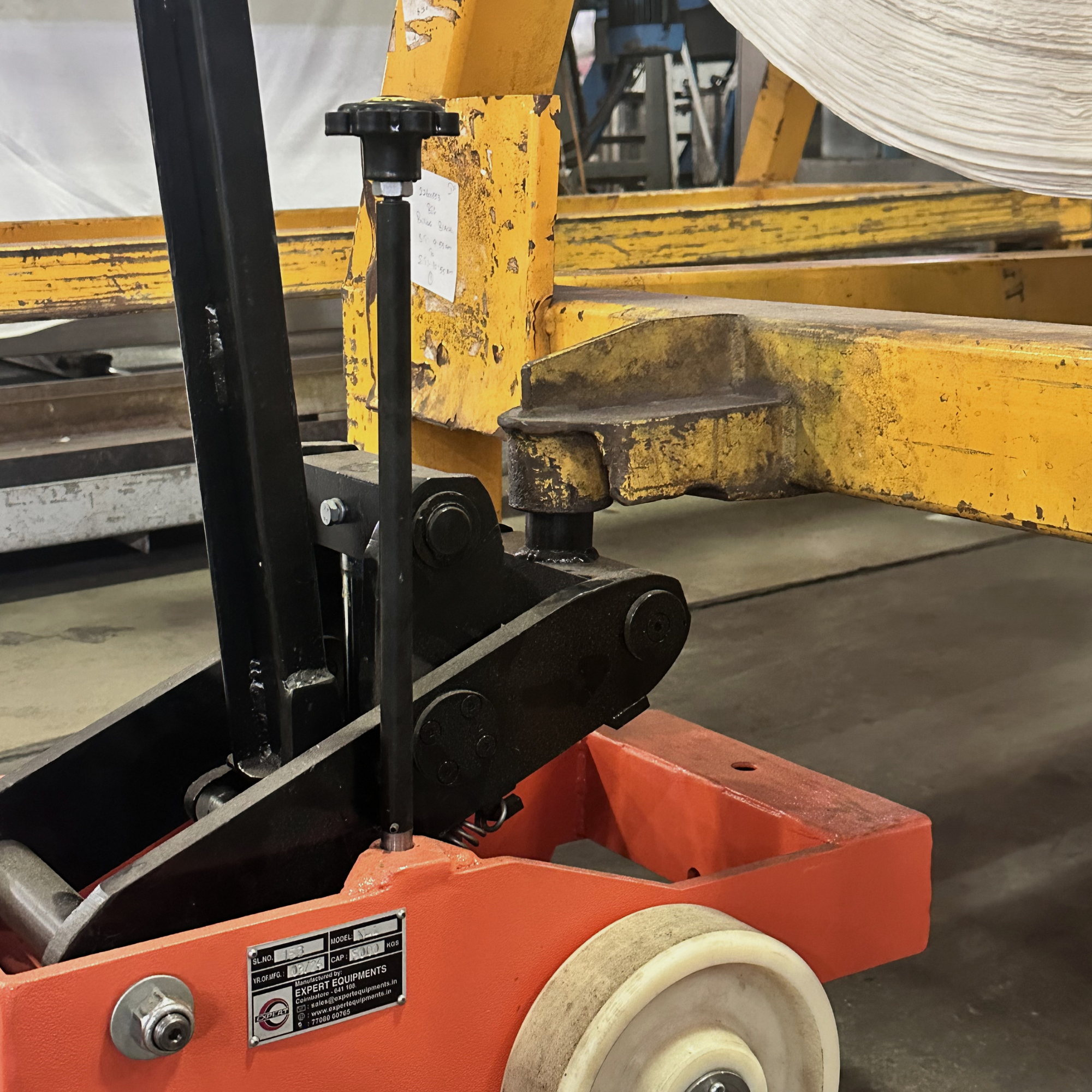

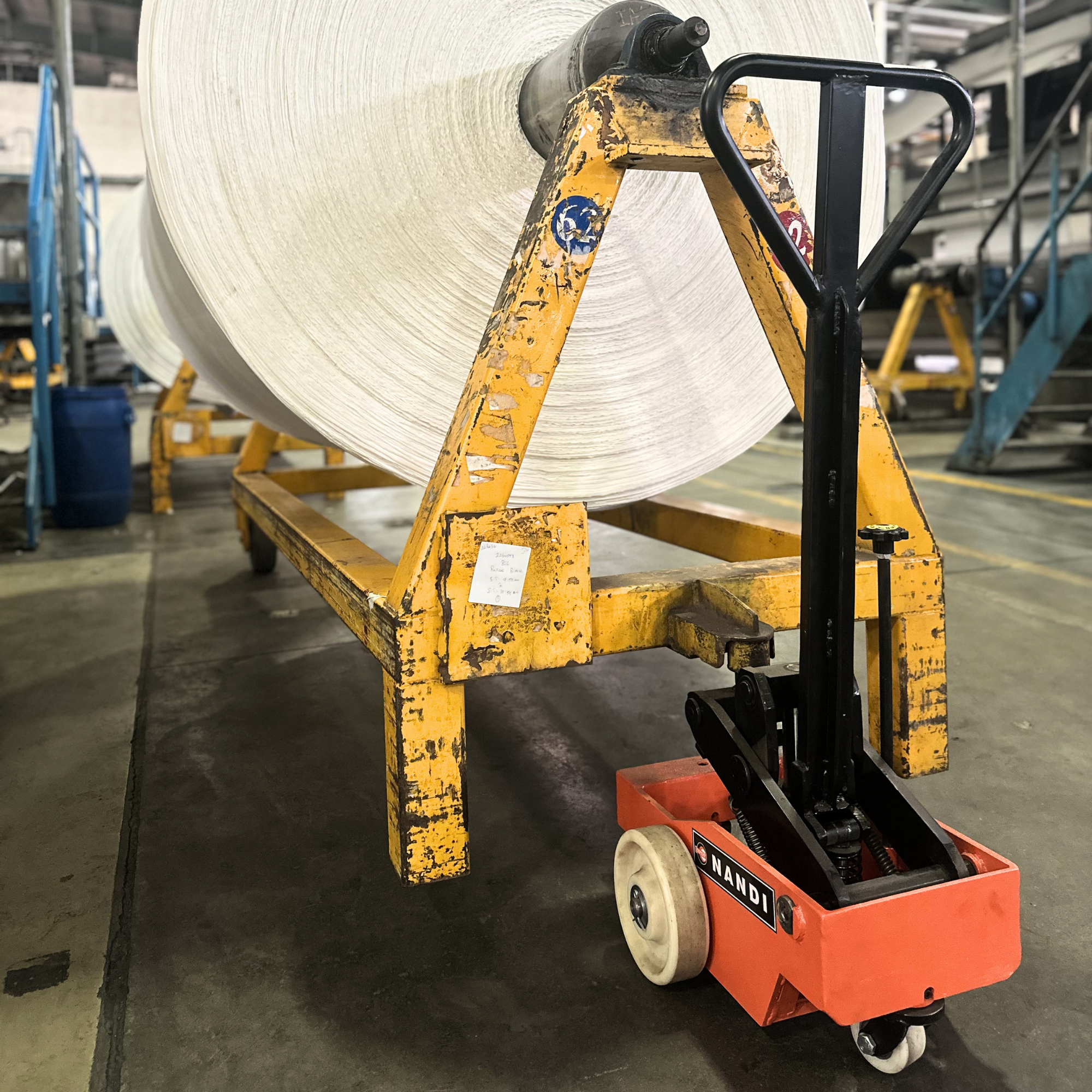

The Nandi Hydraulic A-Frame Tow Trolley is built for textile mills and similar units where loaded A-frames have to be moved safely from one section to another. Your operator slides the trolley under the A-frame support point, pumps the hydraulic piston by hand to lift the frame just clear of the floor, and tows it away. It handles frames carrying large rolls, beams or packed textile material.

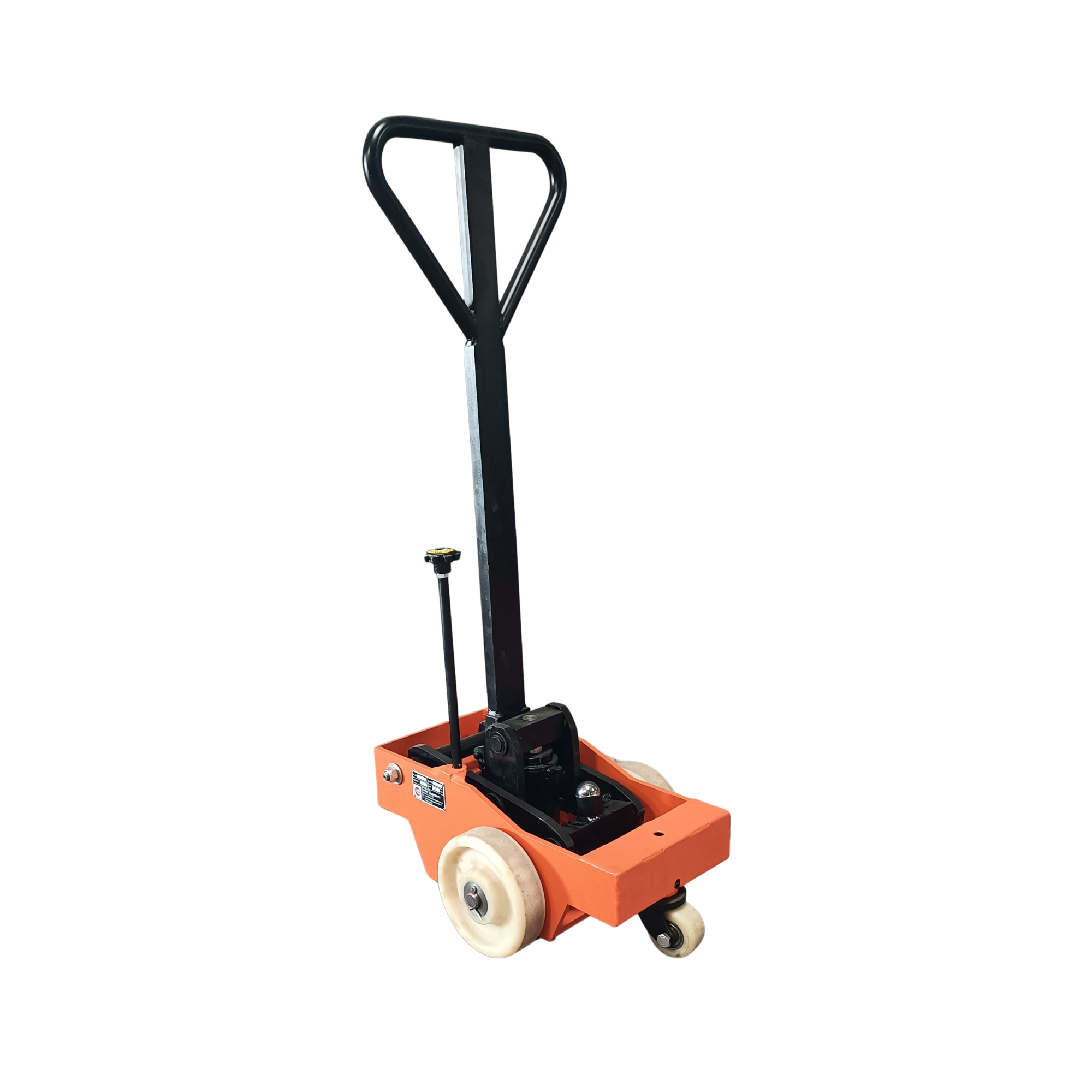

At 235 mm minimum height and 650 × 300 mm overall, the steel body fits under the frame and between machines on a crowded floor, and the double ball bearing nylon wheel keeps it rolling easily under load. It is rated at 5,000 kg. If your A-frames are a different height or footprint, we adjust the dimensions to suit. Spare parts are kept ready and our service team supports the trolley after delivery.
| Product Type | Hydraulic Manual A-Frame Tow Trolley |
| Application | A-Frame Handling in Textile Units |
| Rated Capacity | 5,000 kg |
| Minimum Height | 235 mm |
| Overall Length | 650 mm |
| Overall Width | 300 mm |
| Lifting Method | Hydraulic Piston, Manual Operation |
| Wheel Type | Nylon, Double Ball Bearing |
| Wheel Size | Ø190 × 50 mm |
| Construction | Sturdy Steel Body, Industrial Duty |
| Customisation | Dimensions & Specs on Request |
For safe, controlled movement of loaded A-frames between textile processing and storage sections, with less manual strain on your operators.
Lifting and towing loaded A-frames carrying fabric rolls and material rolls between processing sections.
Moving textile roll support frames within production areas with a controlled hydraulic lift and tow.
Internal transport of beam frames and loaded support structures where the trolley runs all day and the hydraulics must not let you down.
Shop-floor movement in textile processing and storage areas, where the 235 mm low body slides easily under the A-frame support point.
Select the specifications that match your application and our team will prepare a quote for that configuration.
