Safe, smooth AC-powered lifting of heavy materials in factories, warehouses and industrial work areas. Rigid boxed frame, heavy-duty platform and push-button hydraulic control, with platform size and lift height built to your application.

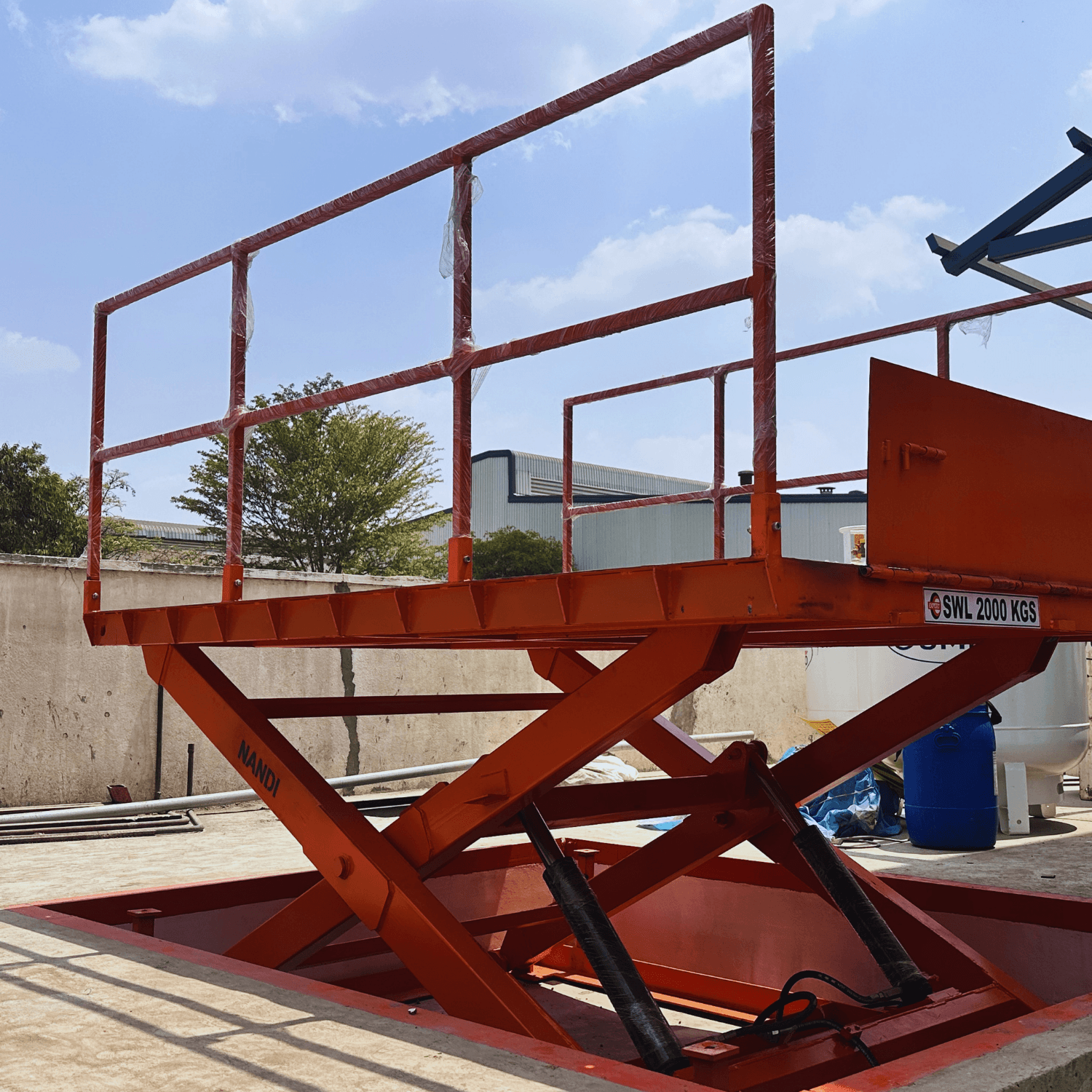

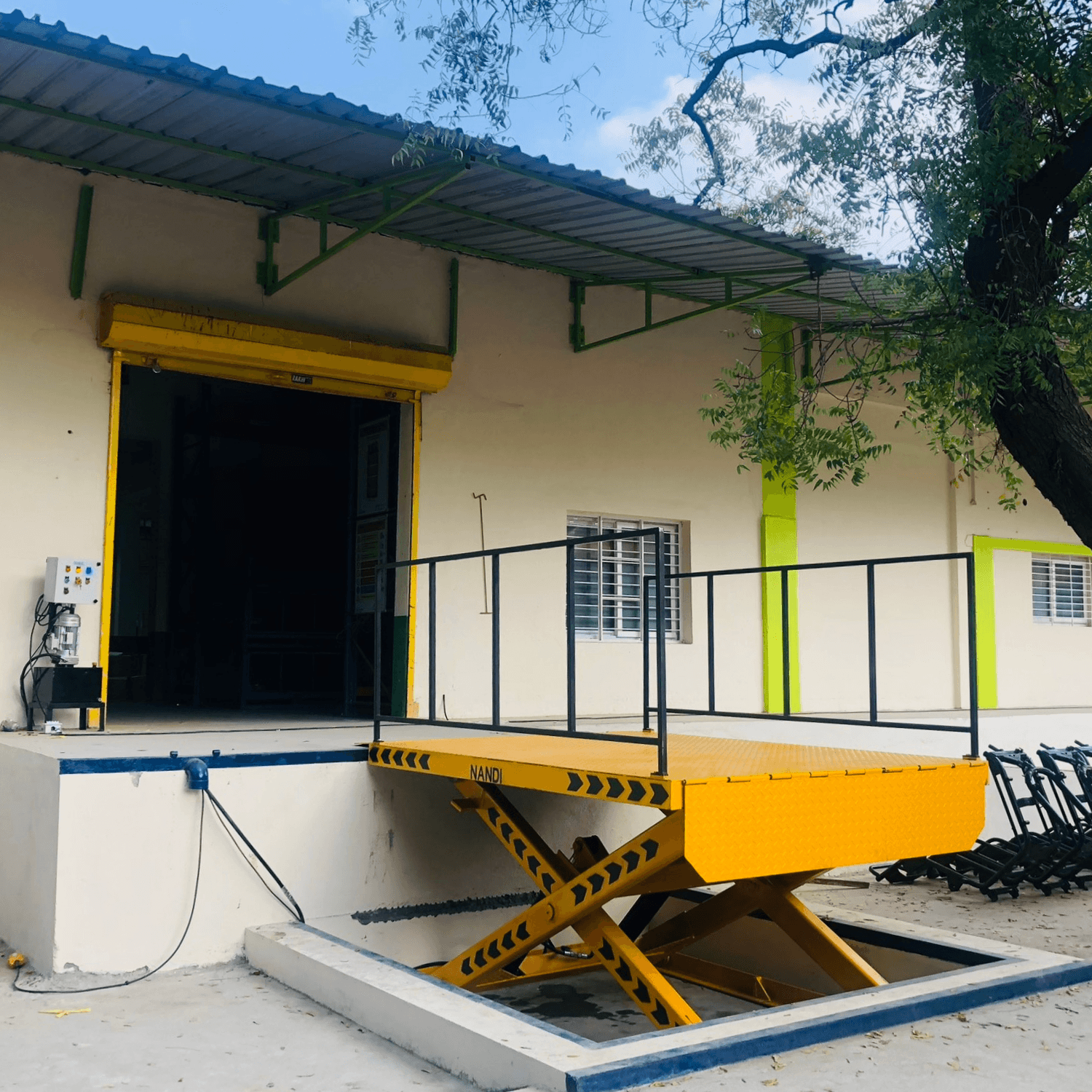

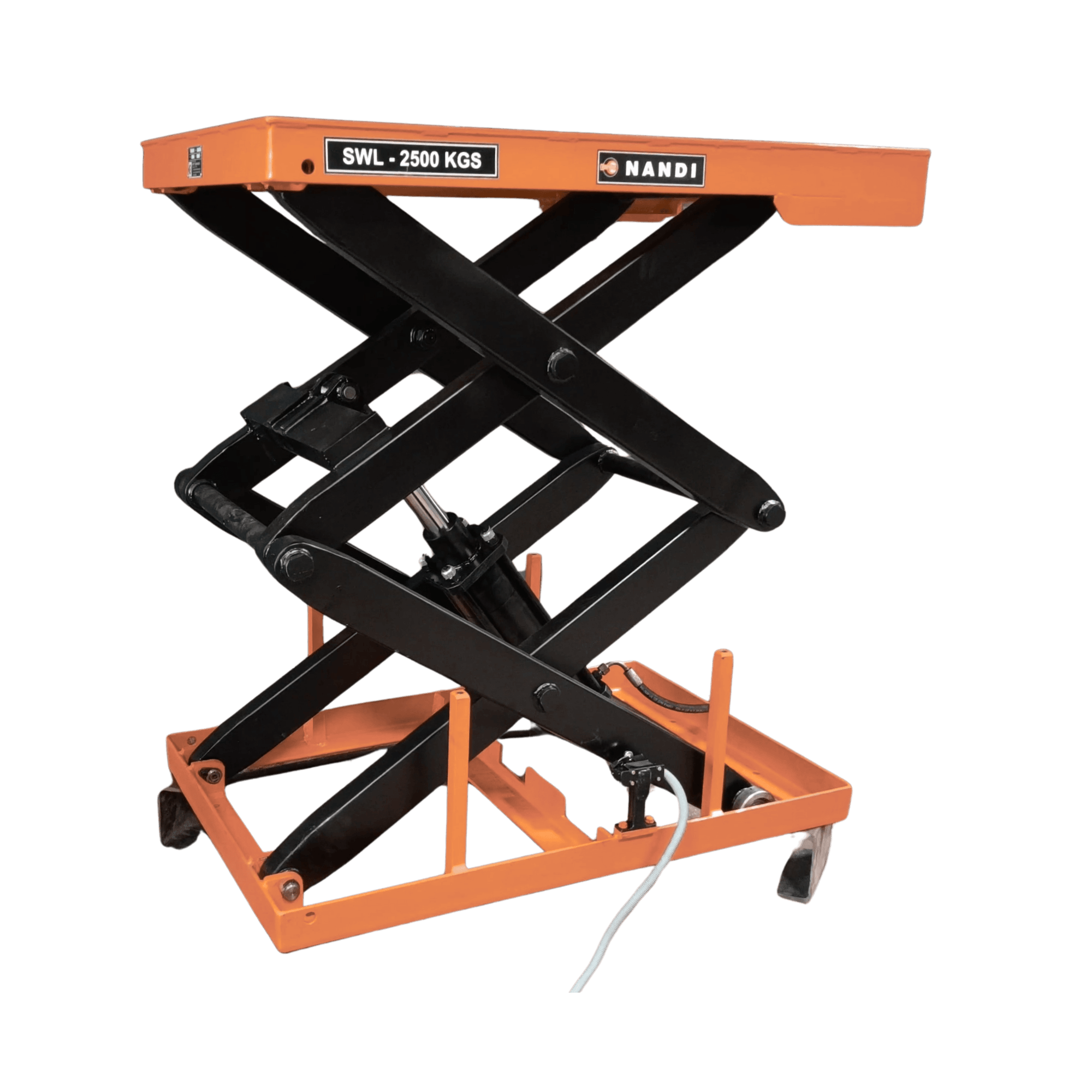

Nandi Hydraulic Scissor Lifts with AC Power Pack raise heavy materials safely and smoothly in factories, warehouses, stores and industrial work areas. A rigid boxed frame, a heavy-duty chequered-plate platform and an AC hydraulic power pack driven by a 3 HP three-phase motor let these lifts carry heavy loads with stability, shift after shift.
Safety is built into every system: an overload relay and 20 A MCB cut-off on the electrical side, an overload relief valve in the hydraulics, and mechanical stoppers with a solenoid release so the platform can be lowered safely during a power failure. Available in capacities from 500 kg to 5,000 kg, with platform size and lift height built to your requirement, and backed by ready spare parts and after-sales support.
| Rated Capacity | 500 / 1,000 / 2,000 / 3,000 / 5,000 kg |
| Platform Size | Customisable |
| Maximum Lift Height | Up to 3,000 mm from Ground Level |
| Lifting Method | AC Power Pack |
| Motor | 3 HP / 3-Phase Flange-mounted (Reputed Make) |
| Controls | Push Buttons, 12V DC Operation |
| Platform Top | 6 mm / 8 mm Chequered Plate |
| Load Piston | EN8, Hard Chrome Plated |
| Hydraulic Oil Tank | 50 Litres |
| Safety Guard | Hand Rail Provided |
| Flaps | Provided |
| Finish | Deep Orange / Yellow & Black |
The right tool wherever heavy materials need to be raised to a convenient working height: safely, smoothly and at the push of a button, across factories, warehouses and production floors.
Everyday material handling in factories, warehouses and stores, lifting heavy loads with stability and dependable AC-powered performance.
Lifting and positioning heavy materials to a convenient working height for assembly, loading, and ergonomic operation.
Internal transfer of loads within production areas where controlled, stable platform lifting keeps material flowing safely.
Workshop tasks that need controlled lifting, with hand rail and flaps for safer operation and carriage guiding rollers for smooth movement.
Select the specifications that match your application. Our team will prepare a tailored quote based on your configuration.
